Advantech 室外型C波段 SSPB-2000C 系列固态功放

发布时间:2021/10/15 16:30:56    浏览次数:




Overview

The SSPB-2000CTM series are hub-mount up-converter transmitters, operating in the C-Band. The SSPB-2000CTM is an integrated unit,complete with power supply, phase-locked oscillator, mixer, filter and cooling mechanism. Intended for outdoor operation, the SSPB2000CTM provides the utmost in convenience and efficiency. They are the smallest fully integrated units on the market today. Other SSPBs are also available for diverse powers or for operation at other up-link frequencies.

The design of these units is based on Advantech AMT™ industry proven reliable solid-state high power amplifiers. Built-in design features and assembly methods incorporated with efficient combining techniques result in an amplifier with exceptional linearity and operating efficiency. The use of high efficiency power supply and conservative thermal designs contribute to the trouble-free operation of the amplifier.

Built-in microprocessor controller provides the capability for serial port interfaces (RS232/485) for remote monitoring and control.



Features

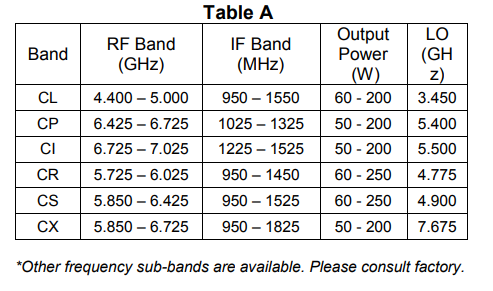

 Converts L-Band to C-Band (see table A)

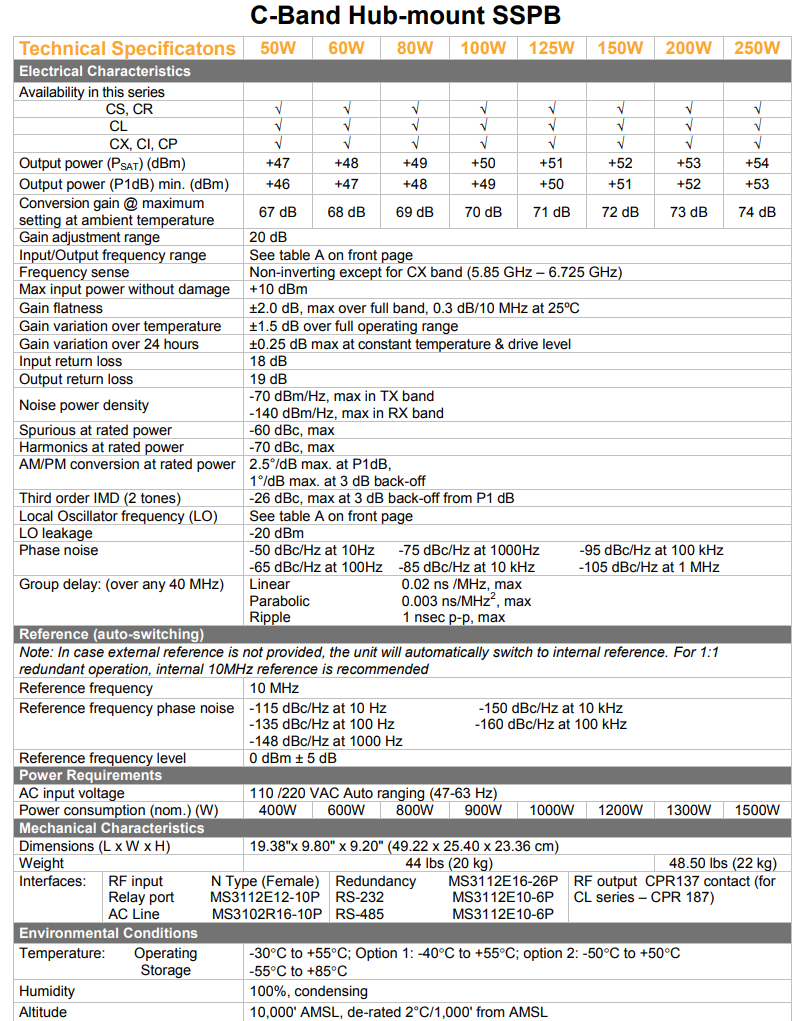

 Integrated amplifier with an output power of 50W to 250W (see
table A)
 Phase-locked oscillator to external 10MHz reference
 High linearity (low intermodulation products)
 Weatherproof package
 Remote Monitor & Control
 Protection against thermal runaway and out-of-lock conditions
 Output sample monitoring port
 Field Replaceable Power Supply
 Built-in Harmonic Filter
 Compact packaging

 CE Marking



Options

 Internal High Stability 10 MHz Reference

 Redundant system

 Remote M&C panel (Ethernet port optional)



Accessories

 Redundancy Kit

 Mounting Frame
