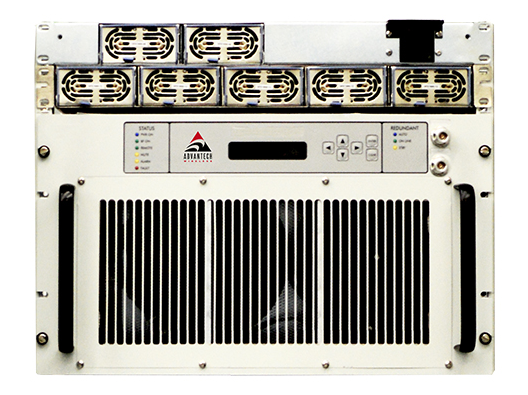

Advantech 室内型C波段机架式 150W-1000W SSPA/SSPB 固态功放
发布时间:2021/10/15 16:57:17 浏览次数:次
Overview Advantech Wireless C-Band line of Amplifiers and BUCs are intended for satellite up-link applications. The design of these units is based on Advantech Wireless’ proven techniques resulting in high linearity and operating efficiency. Conservative thermal design contributes to the very high MTBF for these units. Full monitor and control is provided via the serial or Ethernet ports. Special features such as automatic over-temperature shutdown and high-reflected power and overdrive protection contribute to a trouble free operation. The ARM-C series Rackmount SSPA/SSPB (BUC) is available in output power ranging from 16W to 1000W. Higher power operation may be provided using external phase combining techniques offering an output power up to 6,000W. Please contact factory for more details. Advantech Wireless also offers the SUMMIT and SapphireBlu modular SSPA systems for either indoor or outdoor applications. The full set of accessories made available will facilitate the integration of these units in any application.
Features Full range of output power from 150W to 1000W High linearity Redundant ready with no external controller required Full M&C capability via RS-232 or RS-485 Forward and Reflected high precision power monitoring Input / Output Sample Ports with precision Calibration Charts Redundant Systems shipped fully tested Infinite VSWR protection with automatic high reflected power shutdown Built-in Harmonic Filter PFC (Power Factor Correction) CE marking
Options 1:1 or 1:2 redundant configuration Phase combined systems for higher power L-Band input (SSPB/BUC operation) 10/100BT Ethernet, WEB Interface, SNMP v1, v2, v3 Interface CLI Very high stability 10 MHz OCXO (BUC) Button RF On/Mute for fast emergency Audible Alarm and ACO (Audible Cut Off) button
Accessories Mounting slides Remote M&C panel 500W, 1kW, 3kW Waveguide Loads W/G Circulators W/G Switches
|
