Ku-Band 80W/100W/125W/150W/200W/250W/300W/400W/500W

GaAs based BUC/SSPB/SSPA Rackmount

Overview

Advantech Wireless Technologies Ku-Band line of Amplifiers and BUCs are intended for satellite up-link applications. The design of these units is based on Advantech’s proven techniques resulting in high linearity and operating efficiency. Conservative thermal design contributes to the high MTBF for these units. Full monitor and control is provided via the serial or Ethernet ports. Special features such as automatic over-temperature shutdown and high-reflected power protection contribute to a trouble free operation.

Advantech also offers the SUMMIT modular SSPA system for either indoor or outdoor applications. The full set of accessories made available will facilitate the integration of these units in any application.

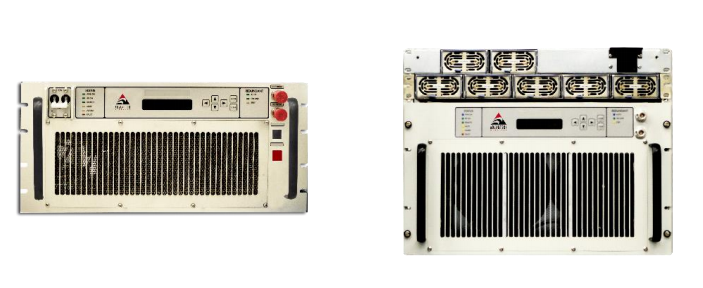

The ARM-K series Rackmount SSPA/SSPB (BUC) is available in output power from 80W to 500W.  Higher power operation may be provided using external phase combining techniques offering an output power up to 800W.

Features

Full range of output power from 80W to 500W

High linearity

Redundant ready with no external controller

Full M&C capability via RS-485 or Ethernet port

Forward and Reflected power monitoring

Output Sample Ports

Redundant Systems shipped fully tested

Infinite VSWR protection with automatic high reflected power shutdown

Built-in Harmonic Filter

PFC (Power Factor Correction)

CE marking

Options

1:1 or 1:2 redundant configuration

Phase combined systems for higher power

L-Band input (SSPB/BUC operation)

SNMP Interface

Accessories

Mounting slides

Remote M&C panel
